●Kimmedai (red bream)/Akodai (red rock fish) fishing
●Bluish-skinned fish fishing such as Buri (yellow tail)/Hiramasa (yellow tail amber jack) etc.
●Light Oyogasetsuri (bait-fishing) (Kanpachi (greater amber jack) )
●Light deep sea fishing (Kimmedai (red bream)/Kuromutsu (Black Japanese bluefish)/Akamutsu (black-throat seaperch)/Medai (Japanese butter fish)

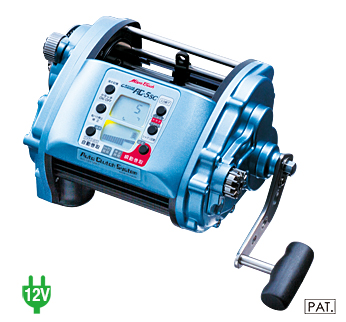

| Item | CAC-5SC | ||
|---|---|---|---|
| ower Source | DC-12V | ||
| Product Code | 02753 | ||
| Line Capacity | When use NEW DEEP SENSOR（PE） | PE LINE #5－1,100ｍ PE LINE #6－900ｍ PE LINE #8－700ｍ PE LINE #10－500ｍ PE LINE #12－400ｍ PE LINE #15－300ｍ PE LINE #20－200ｍ | |
| Maximum load of omission | #350 | ||
| Drag tolerance | 20.0kg－40.0kg | ||
| Instant maximum hoisting force | 64kg | ||
| Sustained winding up force | 20kg | ||
| MAX.Drag Winding Speed (No load) | 150M/min. | ||
| Manual winding gear ratio | 1：1.92 | ||
| Power consumption | 2.6－15A | ||
| Operating temperature | -10℃－80℃ | ||
| Backlash prevention method | － | ||
| Ball bearing | 10 pieces | ||
| weight | 2.4kg | ||
| Functions | Hoisting force control Stop at the bulwarks、Depth memory Slow start・Slow stop Stemless speed change Automatic shakuri (sink-and-draw motion) | ||
| Safety mechanism | +/- Reverse connection prevention、Overload stop control | ||
| Accessories | Handle、Power cord | ||
| Reel size (W×H×D mm) | 250×150×120mm | ||
| List Price | Contact us for pricing | ||
- Hoisting force control [Patented]This will automatically control the hoisting speed in response to hit fish pulling.
- Drag assist leverDrag assist lever mounting type with excellent operability compared with ordinary drag knob.
- Depth memoryBy setting/storing memory of arbitrary shelf, it can automatically stop at the shelf at the next throwing.
- Big Power HandleA big handle is mounted on the power handle. It is effective for assistance at big fight.
- Power HandleStrength increased with the increase of the wall thickness. Grip is also easy to grasp,assist at steering wheel has become more effective.
- One-touch free handleA handle mounting a one-touch free mechanism that prevents reverse rotation of the handle during“Automatic delivery” operation.
- Sound brake systemA system that applies a slight brake to the spool and prevents backlash.
- Click sound brake systemIn addition to the normal sound brake function, it informs of the hit by the loud volume click sound.
- High speed automatic winding functionBy pressing and holding the automatic winding switch for a long time, wind up at the highest speed to the stop position at the bulwarks.
- Automatic Shakuri (sink-and-draw motion) functionAutomatic Shakuri (sink-and-draw motion) and dropping function within an arbitrary range. By repeating sink-and-draw motion it attracts hits.
- Danbiki-shakuri (step pull and sink-and-draw motion) functionStart an arbitrary Shakuri (sink-and-draw motion) with one switch. Automatic winding up to the stop position
at the bulwarks after finishing of Shakuri (sink-and-draw motion).
- Guard armGuard arm is equipped to prevent scratches on the body due to contact as standard.
- Automatic deliveryThe spool will be reversed with one switch and delivers the line. It is effective when aiming for additional bites.
- Chum winding upIt scatters chum with high speed Shakuri (sink-and-draw motion) from any shelf and attracts the target. Automatically winds up to the stop position at the bulwarks after a certain period of inactivity.
- CE markCE marking indicates that the product conforms to the essential requirements specified in the EU directive and regulations by sector. In addition, “Self-Certification” conforming to CE marking is posted on our website.
