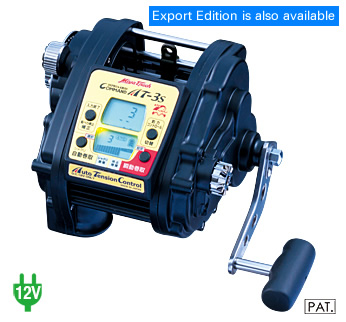

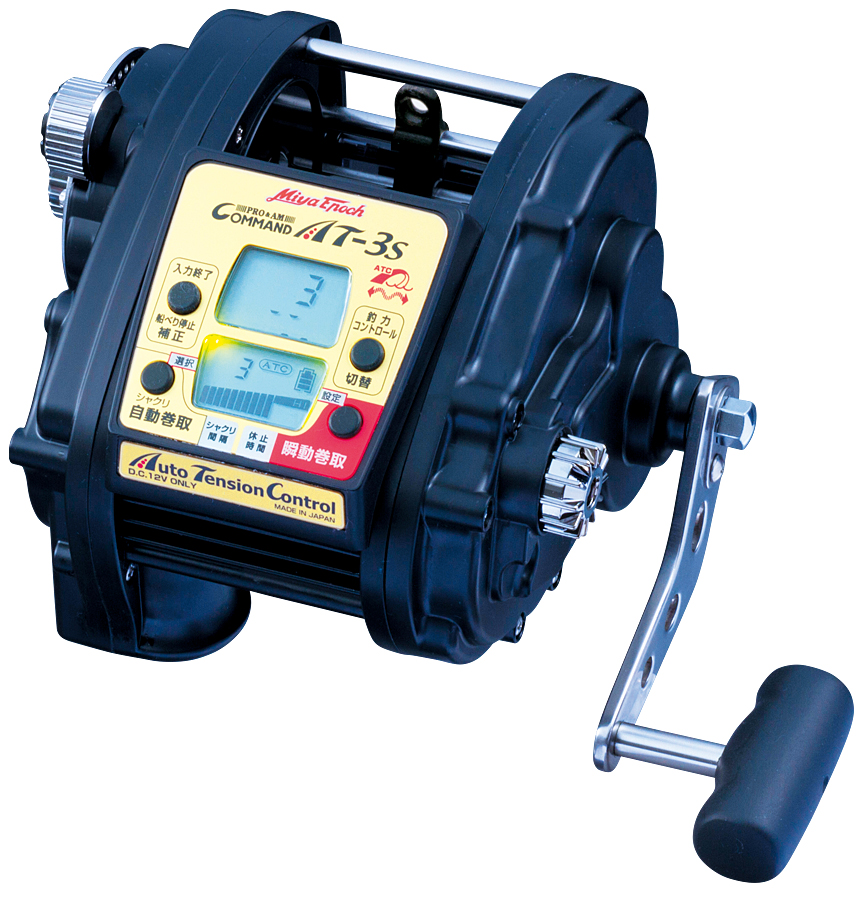

- AT-3S
Fishing line spool amount is increased! PE Line #6: 700m. Amazingly high power with instant maximum winding force of 55kg!
With the fishing force control function, the reel senses the strength and weakness of line tension due to fish’s bites and ship's sway, winding can be controlled in best conditions. You can set the step pull interval/pause time (but not possible to set up-down shakuri (sink-and-draw motion function). As we adopt the multi-plate type drag system, smoother sliding becomes possible. body is small, but with the installation of a large motor, high power of 55 kg of maximum instantaneous winding force is realized. Since the control lever was set on the left side of the main unit, it is possible to adjust the drag even at the time of winding with the hand steering wheel.
※ Note: AT-3S does not have the depth memory function.
【About Export Edition】
The Export Edition is for export only.
The nameplate and instruction manual are in English.
 |
 |
 |
Target fish (Target fishing)
●Bluish-skinned fish fishing such as Buri (yellow tail)/Hiramasa (yellow tail amber jack) etc.
●Light Oyogasetsuri (bait-fishing) of such as Kanpachi (greater amber jack)
●Light deep sea fishing (Kimmedai (red bream)/Ara (saw-edged perch)
●Deep sea fishing such as Onikasago (scorpion fish)/Okoze (stone fish)
●Okimebaru (sebastes thompsoniare)/Tara (codfish) fishing in Japan Sea Side
| Item | AT-3S | ||
|---|---|---|---|
| Power Source | DC-12V | ||
| Product Code | 02531 | ||
| Line Capacity | When use NEW DEEP SENSOR（PE） | PE LINE #4－900ｍ PE LINE #5－800ｍ PE LINE #6－700ｍ PE LINE #8－550ｍ PE LINE #10－450ｍ PE LINE #12－350ｍ | |
| maximum number of weights for a sinker | #300 | ||
| Drag Capacity | 20kg－40kg | ||
| MAX.Drag Winding Power | 55kg | ||
| Sustained winding up force | 16kg | ||
| MAX.Drag Winding Speed (No load) | 10－150M/min. | ||
| Manual winding gear ratio | 1：1.92 | ||
| Power consumption | 1.4－20A | ||
| Operating temperature | -10℃－80℃ | ||
| Ball bearing | 10 pieces | ||
| weight | 2.1kg | ||
| Functions | Hoisting force control ON-OFF change switching Danbiki-shakuri (Sink-and-draw motion for gradual bites)、Stop at the bulwarks Slow start・Slow stop Stemless speed change（Pause・Extremely low speed～Maximum speed） | ||
| Safety mechanism | +/- Reverse connection prevention、Overload stop control | ||
| Accessories | Handle、Power cord | ||
| Reel size (W×H×D mm) | 215×150×120mm | ||
| List Price | Contact us for pricing | ||
* This specification may be changed for improvement without notice.
