- AD-3

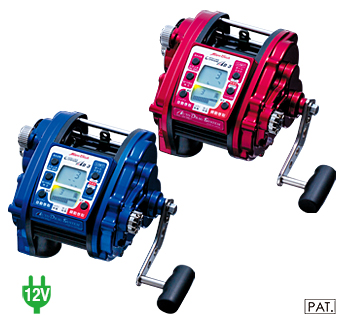

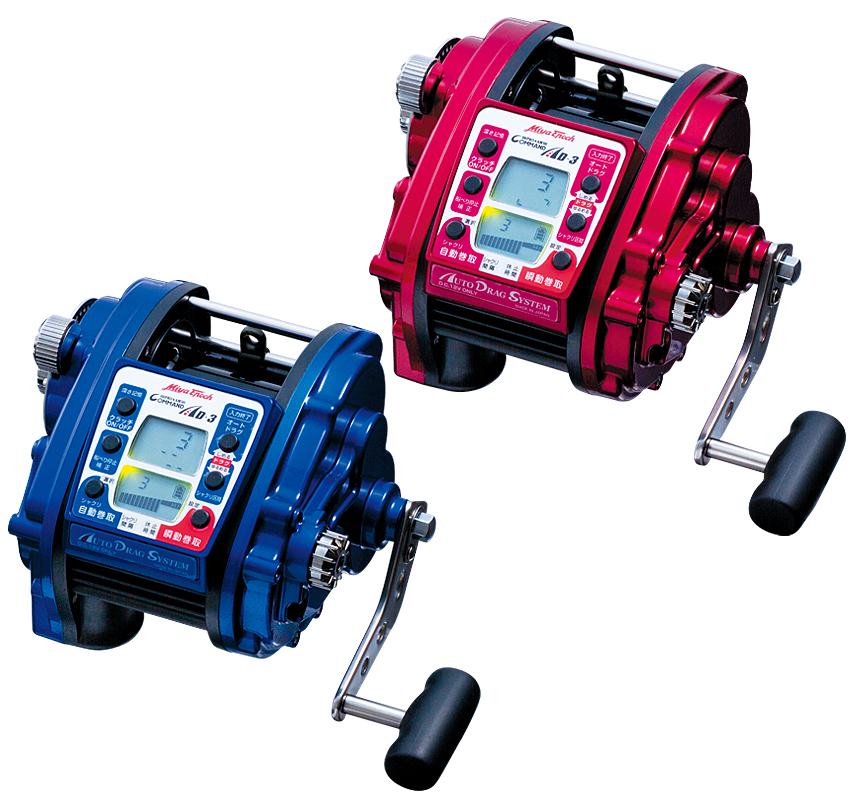

The world's first electric fishing reel mounting auto drag function is finally born!
Fishing is possible with AD-3 only by button operation. The instant maximum hoisting force of 43kg is enough power for bluish-skinned fish fishing By sub motor installation, subtle drag adjustment and clutch ON/OFF are made possible with switch operation. Drag is effective even if a big game hits in the stop state of the shelf with the Shakuri (sink-and-draw motion) function which can be set arbitrarily. Equipped with a multi-plate drag system that can also adjust fishing power control function and electric drag fine adjustment of electric reel to adjust winding up.
 |
 |
 |
 |
●Bluish-skinned fish fishing such as Buri (yellow tail)/Hiramasa (yellow tail amber jack) etc.
●Light Oyogasetsuri (bait-fishing) (Kanpachi (greater amber jack)/Moroko (willow gudgeon) /)
●Kensakiika (sword last cuttlefish)/Yariika (spear squid) /Surumeika (Japanese common squids) fishing
●Deep sea fishing such as Onikasago (scorpion fish)/Okoze (stone fish)
●Okimebaru (sebastes thompsoniare)/Tara (codfish) fishing in Japan Sea Side
| Part number | AD-3 (R) | AD-3 (B) | |
|---|---|---|---|
| Power supply | DC-12V | ||
| Body color | Metallic Ruby red | Metallic Garter blue | |
| JAN (Japan Article Number) code (last 5 digits) | 02500 | 02517 | |
| Line winding volume (No.-m) | NEW Deep sensor | PE LINE #4-700ｍ PE LINE #5-600ｍ PE LINE #6-500ｍ PE LINE #8-400ｍ PE LINE #10-300ｍ PE LINE #12-200ｍ |
|
| Maximum load of omission | 300号 | ||
| Drag tolerance | 20－30kg | ||
| Instant maximum hoisting force | 43kg（421.7Ｎ） | ||
| Sustained winding up force | 16kg | ||
| Hoisting speed/th> | 10－150ｍ/分 | ||
| Manual winding gear ratio | 1：1.92 | ||
| Power consumption | 2.6－15.0Ａ | ||
| Ball bearing | 10 pieces | ||
| Reel self-weight | 2.1kg | ||
| Electronic control | Auto drag function、Hoisting force control High speed automatic winding, Shakuri (sink-and-draw motion) arbitrary setting Stop at the bulwarks、Depth memory Slow start・Slow stop Stemless speed change | ||
| Safety mechanism | +/- Reverse connection prevention、Overload stop control | ||
| Accessories | Handle、Power cord | ||
| Reel size (W×H×D mm) | 215×150×120mm | ||
| Manufacturer's list price of the body | Contact us for pricing | ||
* The price indicates the manufacturer's list price only but does not include consumption tax.
* This specification may be changed for improvement without notice.
