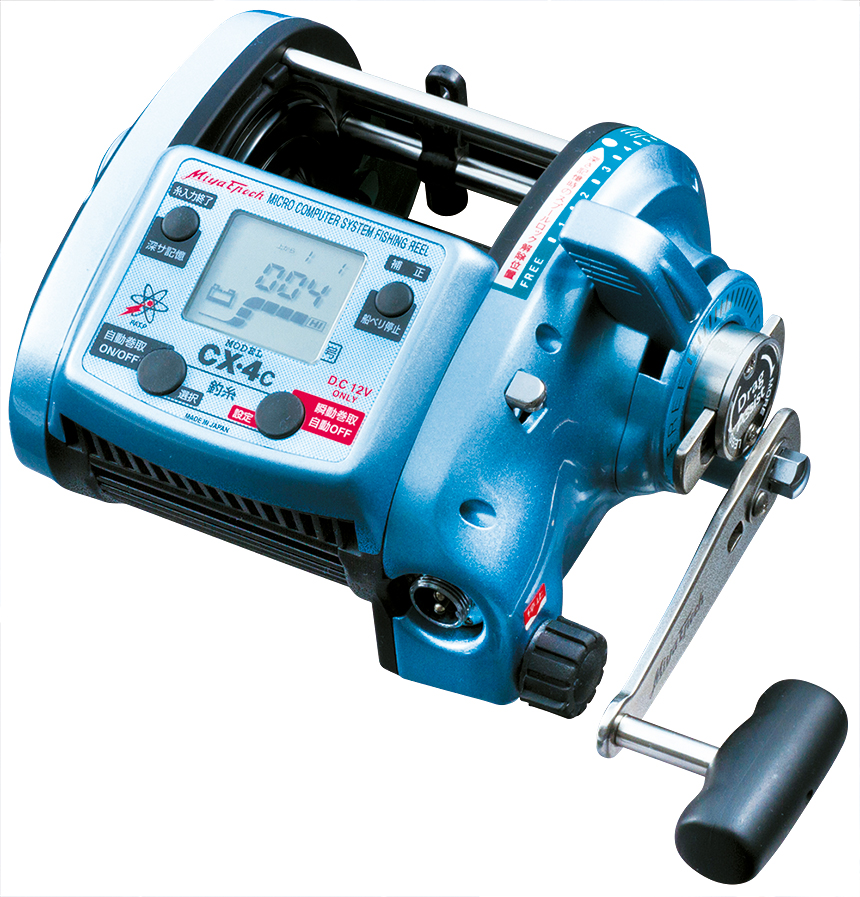

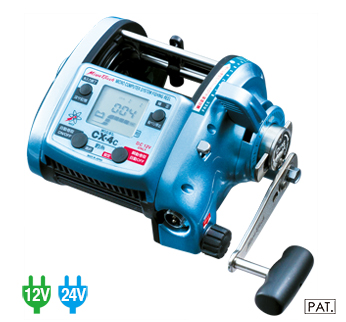

CX-4C

CX-4C

Ideal for beginners in deep sea light terminal tackle fishing! Drag assist lever is equipped as standard.

Automatic bulwark function to automatically memorize the point at which the thread is dropped. 24 volts to demonstrate the power to wind up vigorously. A model adopting a big-sized guide holder.


Download catalog Download Operation Manual
Target fish (Target fishing)

●Kimmedai (red bream)/Akodai (red rock fish) fishing
●Bluish-skinned fish fishing such as Buri (yellow tail)/Hiramasa (yellow tail amber jack) etc.
●Tara (codfish)/Kuromutsu (Black Japanese bluefish) fishing

Specification
Part numberCX-4C
Power supplyDC-12VDC-24V
JAN (Japan Article Number) code (last 5 digits)0291302937
Line winding volume
(No.-m)
NEW Deep sensor
(下巻きアダプター使用時)
PE LINE #5-1,200(600)m
PE LINE #6-1,000(500)m
PE LINE #8-800(350)m
PE LINE #10-600(250)m
PE LINE #12-500(200)m
PE LINE #15-300(150)m
Maximum load of omission#250#350
Drag tolerance20kg-28.8kg
Instant maximum hoisting force25kg35kg
Sustained winding up force13kg20kg
Maximum hoisting speed/when without load110M/min170M/min
Manual winding gear ratio1:3
Power consumption2.2~16A0.8A-13A
Operating temperature-10℃-80℃
Backlash prevention methodSound brake
Ball bearing7 pieces
Reel self-weight1.8kg
Electronic controlStop at the bulwarks、Depth memory
Slow start・Slow stop
Stemless speed change(Pause/Minimum speed-Maximum speed)
Safety mechanism+/- Reverse connection prevention、Overload stop control
Battery voltage drop detection、Over-voltage detection
AccessoriesPower cord, Cord for series connection (24V only)
Reel size (W×H×D mm)175×100×155mm
Manufacturer's list price of the bodyYen 91,000.-Yen 107,000.-

* The price indicates the manufacturer's list price only but does not include consumption tax.
* This specification may be changed for improvement without notice.

Explanation of the function icons
