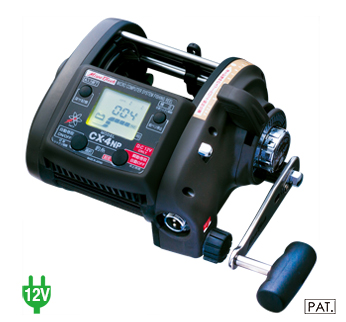

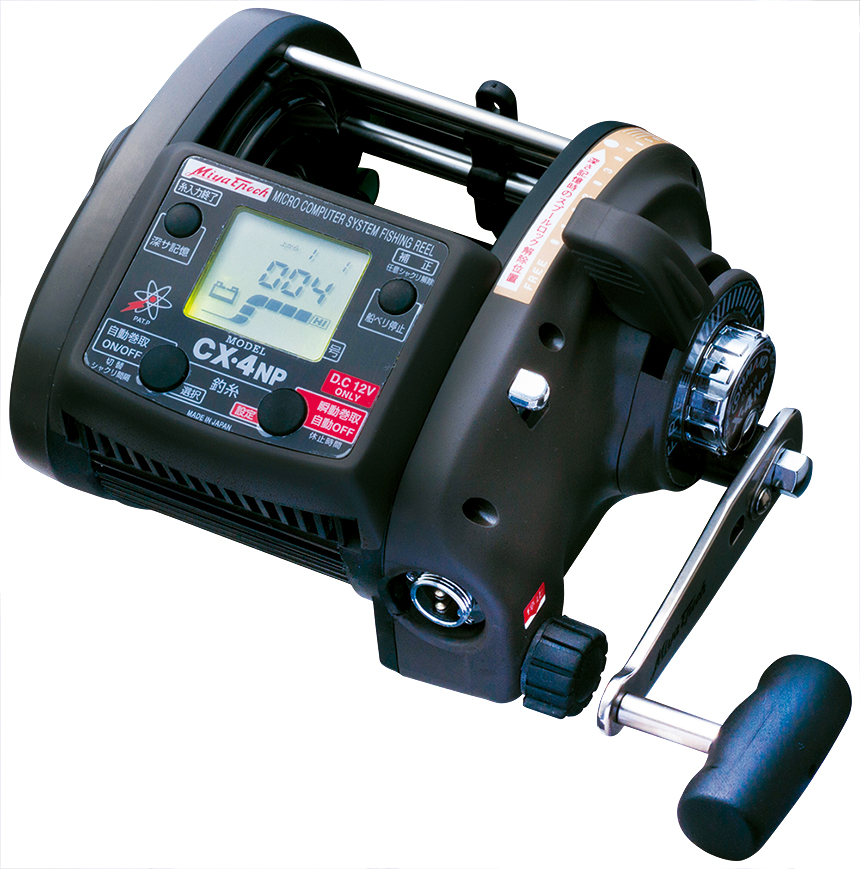

CX-4NP

CX-4NP

Shakuri (sink-and-draw motion) function is also mounted on high power with instant maximum winding force of 40 kg.

CX-4 series suitable for beginners of the deep sea and LT deep sea fishing. It corresponds not only to the deep sea but also to large items such as bluish-skinned fish fishing (such as Buri (yellow tail)/Hiramasa (yellow tail amber jack)/Kanpachi (greater amber jack) etc.). It is also a popular model for professional fishers.
Major features

●Double memory function (memorize 2 shelves)

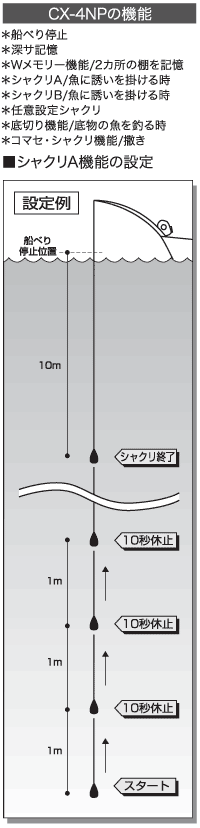

●Shakuri A (sink-and-draw motion) function (when attracting fish/hoisting up by 1 m and 10 seconds pause are repeated)
●Shakuri B (sink-and-draw motion) function (when attracting fish/hoisting up by 50 cm and 6 seconds pause are repeated)
● Sokokiri function (Function to separate slightly from the seabed when fishing bottom fish)
●Komase (chum scattering)/Shakuri (sink-and-draw motion) function (chum)
●Optional setting Shakuri (sink-and-draw motion)


Download catalog Download Operation Manual
Target fish (Target fishing)

●Kimmedai (red bream)/Akodai (red rock fish) fishing
●Bluish-skinned fish fishing such as Buri (yellow tail)/Hiramasa (yellow tail amber jack) etc.
●Tara (codfish)/Kuromutsu (Black Japanese bluefish) fishing

Specification
Part numberCX-4NP
Power supplyDC-12V
JAN (Japan Article Number) code (last 5 digits)02463
Line winding volume
(No.-m)
NEW Deep sensor
(When winding down adapter is used)
PE LINE #5-1,200(600)m
PE LINE #6-1,000(500)m
PE LINE #8-800(350)m
PE LINE #10-600(250)m
PE LINE #12-500(200)m
PE LINE #15-300(150)m
Maximum load of omission#300
Drag tolerance20kg-28.8kg
Instant maximum hoisting force40kg
Sustained winding up force15kg
Maximum hoisting speed/when without load150M/min.
Manual winding gear ratio1:3
Power consumption2-20A
Operating temperature-10℃-80℃
Backlash prevention methodSound brake
Ball bearing7 pieces
Reel self-weight1.8kg
Electronic controlDanbiki-shakuri (step pull and sink-and-draw motion) function
Stop at the bulwarks、Depth memory
Slow start・Slow stop
Stemless speed change(Pause/Minimum speed-Maximum speed)
Safety mechanism+/- Reverse connection prevention、Overload stop control
Battery voltage drop detection、Over-voltage detection
AccessoriesPower cord, Cord for series connection (24V only)
Reel size (W×H×D mm)175×100×155mm
Manufacturer's list price of the bodyYen 94,000.-

* The price indicates the manufacturer's list price only but does not include consumption tax.
* This specification may be changed for improvement without notice.
