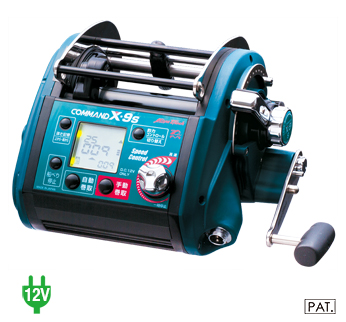

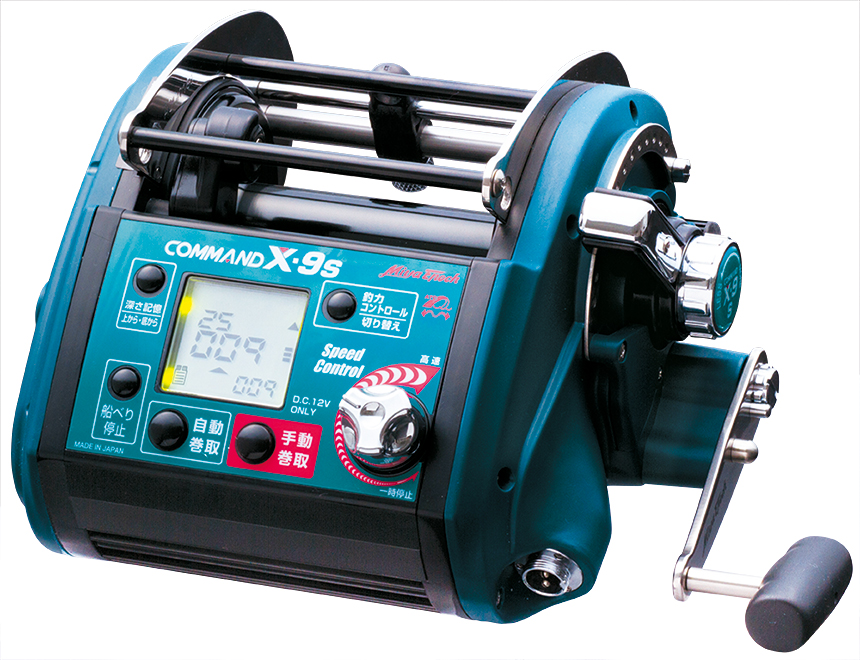

- CX-9S
It is a simple version that inherited the machine of CX-9SP as it is.
We have changed the body paint while leaving the function of the standard reel CX-9SP intact, finished in a simple version by removing the guard arm. In addition, it has a fishing power control function.

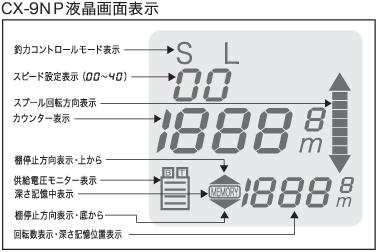

Liquid crystal screen display
 |
 |
 |
●Kimmedai (red bream)/Akodai (red rock fish) fishing from Omaezaki to Izu Peninsula offshore
●Menuke (ocean perch)/Madara (Pacific cod) fishing in Hokkaido/ Tohoku district
●Omutsu (Big Japanese bluefish)/Oara (Big saw-edged perch)/Odara (Big Pacific cod)/Aburabouzu (Skilfish) fishing
●Buri (Yellow tail)/Kuromutsu (Black Japanese bluefish)/Umeiro (Yellow tail blue snapper) fishing at the offshore of Cape Ashizuri
| Part number | CX-9S | ||
|---|---|---|---|
| Power supply | DC-12V | ||
| JAN (Japan Article Number) code (last 5 digits) | 01862 | ||
| Line winding volume (No.-m) | NEW Deep sensor | PE LINE #10－1,600ｍ PE LINE #12－1,400ｍ PE LINE #15－900ｍ PE LINE #20－800ｍ | |
| Nylon thread | PE Line #20－1,000m PE LINE #24－800ｍ PE LINE #30－650ｍ | ||
| Maximum load of omission | #600号 | ||
| Drag tolerance | 25.0kg－47.8kg | ||
| Instant maximum hoisting force | 58kg | ||
| Sustained winding up force | 30kg | ||
| Maximum hoisting speed/when without load | 110M/min | ||
| Manual winding gear ratio | 1：3.18 | ||
| Power consumption | 1.4－20A | ||
| Operating temperature | -10℃－80℃ | ||
| Backlash prevention method | Sound brake | ||
| Ball bearing | 11 pieces | ||
| Reel self-weight | 4.1kg | ||
| Electronic control | Hoisting force control two (2) mode switching Stop at the bulwarks、Depth memory Slow start・Slow stop Stemless speed change（Pause・Extremely low speed-Maximum speed） | ||
| Safety mechanism | +/- Reverse connection prevention、Overload stop control | ||
| Accessories | Power cord | ||
| Reel size (W×H×D mm) | 240×150×220mm | ||
| Manufacturer's list price of the body | Contact us for pricing | ||
* The price indicates the manufacturer's list price only but does not include consumption tax.
* This specification may be changed for improvement without notice.
