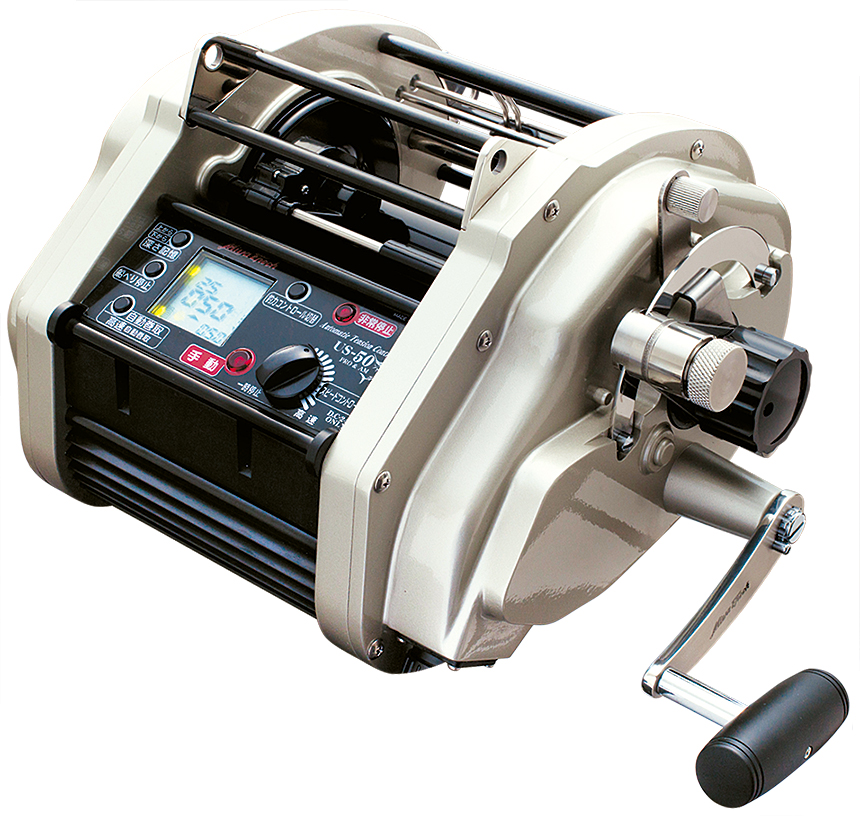

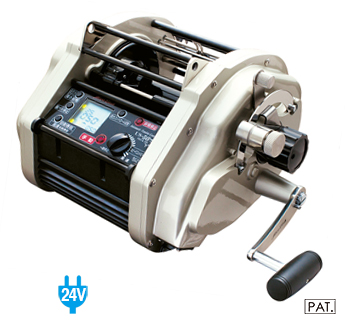

- US-50 PRO&AM
A masterpiece of an electric reel that condensed many years of know-how into a clear-cut and fearless body.
Located at the top peak of high power for such as 300kg class tuna fishing. A masterpiece of an electric reel that condensed many years of know-how into a clear-cut and fearless body. The W clutch system which can respond to whatever big games, with the fishing power control function, and can turn on and off the clutch while keeping the drag set once. The one-touch free level line mechanism will eliminate the level line trouble at the time of the flat-out running of the tuna. Also high speed automatic winding function is realized. It can be used for trolling if you install the US-50 dedicated roller (optional) and set it to Maximum X.
 |
 |
 |
 |
●Blue fin tuna fishing at the Tsugaru Strait/Tsushima Strait
●Blue fin tuna fishing at the Yamaguchi Prefecture, Yachigase
●Ushishibi (300kg class blue fin tuna) fishing in Okinawa Prefecture
●Kan-nagi (matured seven band grouper) fishing at Yonagunijima Island
●Extra big migratory fishing/deep sea fishing
| Part number | US-50 PRO&AM | ||
|---|---|---|---|
| Power supply | DC-24V | ||
| JAN (Japan Article Number) code (last 5 digits) | 01800 | ||
| Line winding volume (No.-m) | NEW Deep sensor | PE LINE #20－1,600ｍ PE LINE #30－1,300ｍ | |
| Nylon thread | PE LINE #60－800ｍ | ||
| Drag tolerance | 34.0kg－80.0kg | ||
| Instant maximum hoisting force | 130kg | ||
| Sustained winding up force | 75kg | ||
| Maximum hoisting speed/when without load | 110M/min | ||
| Manual winding gear ratio | 1：2.66 | ||
| Power consumption | 0.7－18A | ||
| Operating temperature | -10℃－80℃ | ||
| Backlash prevention method | Sound brake | ||
| Ball bearing | 17 pieces | ||
| Reel self-weight | 15kg | ||

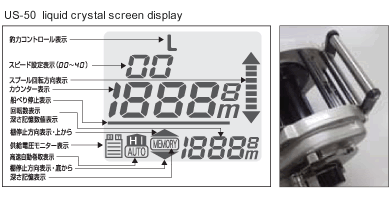

| Electronic control | Hoisting force control Double clutch system New mechanism level line High speed automatic winding, Emergency stop control Stop at the bulwarks、Depth memory Slow start・Slow stop Stemless speed change（Pause・Extremely low speed～Maximum speed） | ||
| Safety mechanism | +/- Reverse connection prevention、Overload stop control | ||
| Accessories | Aluminum case、Power cord Cord for series connection | ||
| Reel size (W×H×D mm) | 402×278×306mm | ||
| Manufacturer's list price of the body | Contact us for pricing | ||
* The price indicates the manufacturer's list price only but does not include consumption tax.
* This specification may be changed for improvement without notice.
